ZXm 1A/40 Dirty Water Drainage submersible pump “Vortex” PEDROLLO
€229.36
1 in stock
ZX series pumps are suitable for draining waste water in domestic applications and for pumping dirty water containing suspended solids up to Ø 40 mm. They distinguish themselves for the ease with which they are installed and their reliability under automatic operating conditions in fixed installations.
Features
Liquid type: Dirty water
Uses: domestic
Applications: drainage, dirty water - slightly solid particles, emptying tanks
typology: submersible
Family: dirty water drainage
Performance Range:
- Flow rate up to 400 l/min (24,0 m³/h)
- Head up to 11 m
Application Limit:
- Temperature of the liquid to +40 °C
- 5 m maximum immersion depth (with a sufficiently long power cable)
- Passage of suspended solids up to Ø 40 mm
- Suction down to 50 mm above ground level
- 240 mm minimum immersion depth for continuous service

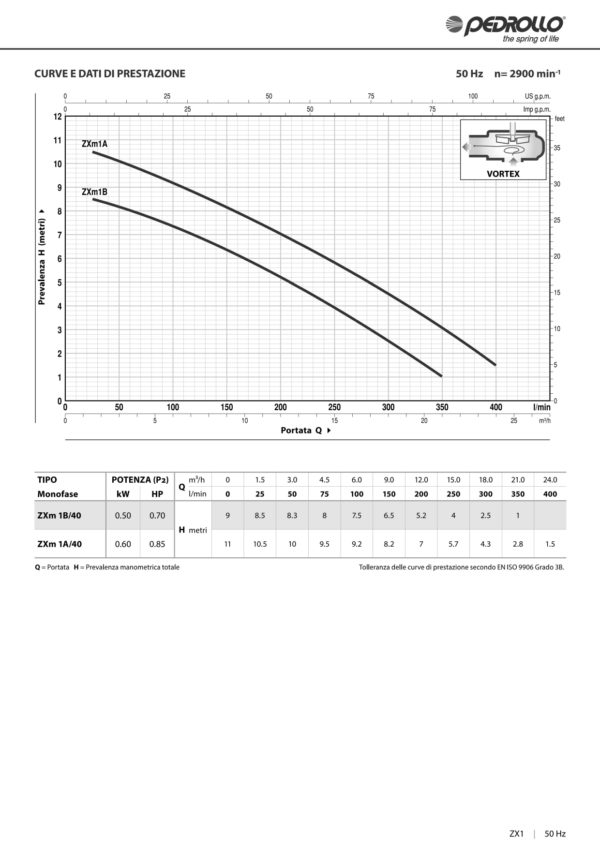

DOWNLOAD DATASHEET ZX1 VORTEX_EN_50Hz
Additional information
| Weight | 11.7 kg |
|---|---|
| Dimensions | 16.2 × 37.8 cm |
| Brand | |
| Power | 0.60kw, 0.85HP |
| Performance | H: 10.5-1.5 m, Q: 25-400 l/min |
| Ports | DN: 1½” |
| Passage of solids | Ø 40 mm |
