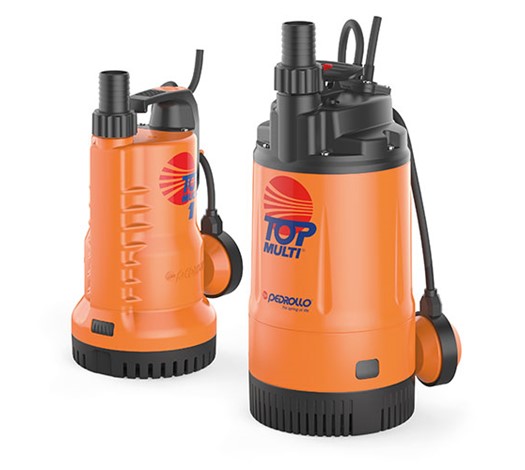

TOP MULTI 2 Submersible multi-impeller pumps PEDROLLO
€219.60
1 in stock
TOP MULTI® pumps are recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made.
Because of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc.
Features
Liquid type: Clean Water
Uses: domestic, civil
Applications: irrigation pumps, water supply systems, pressure systems
typology: borehole
Family: close-coupled
Performance Range:
- Flow rate up to 120 l/min (7,2 m³/h)
- Head up to 52 m
Application Limit:
- Temperature of the liquid to +40 °C
- Immersion depth:
– up to 3 m for TOP MULTI 1
– up to 10 m for TOP MULTI 2-3-4-5
(with a sufficiently long power cable)
- Suction level:
– 25 mm above ground level for TOP MULTI 1
– 35 mm above ground level for TOP MULTI 2-3-4-5
- Continuous service S1

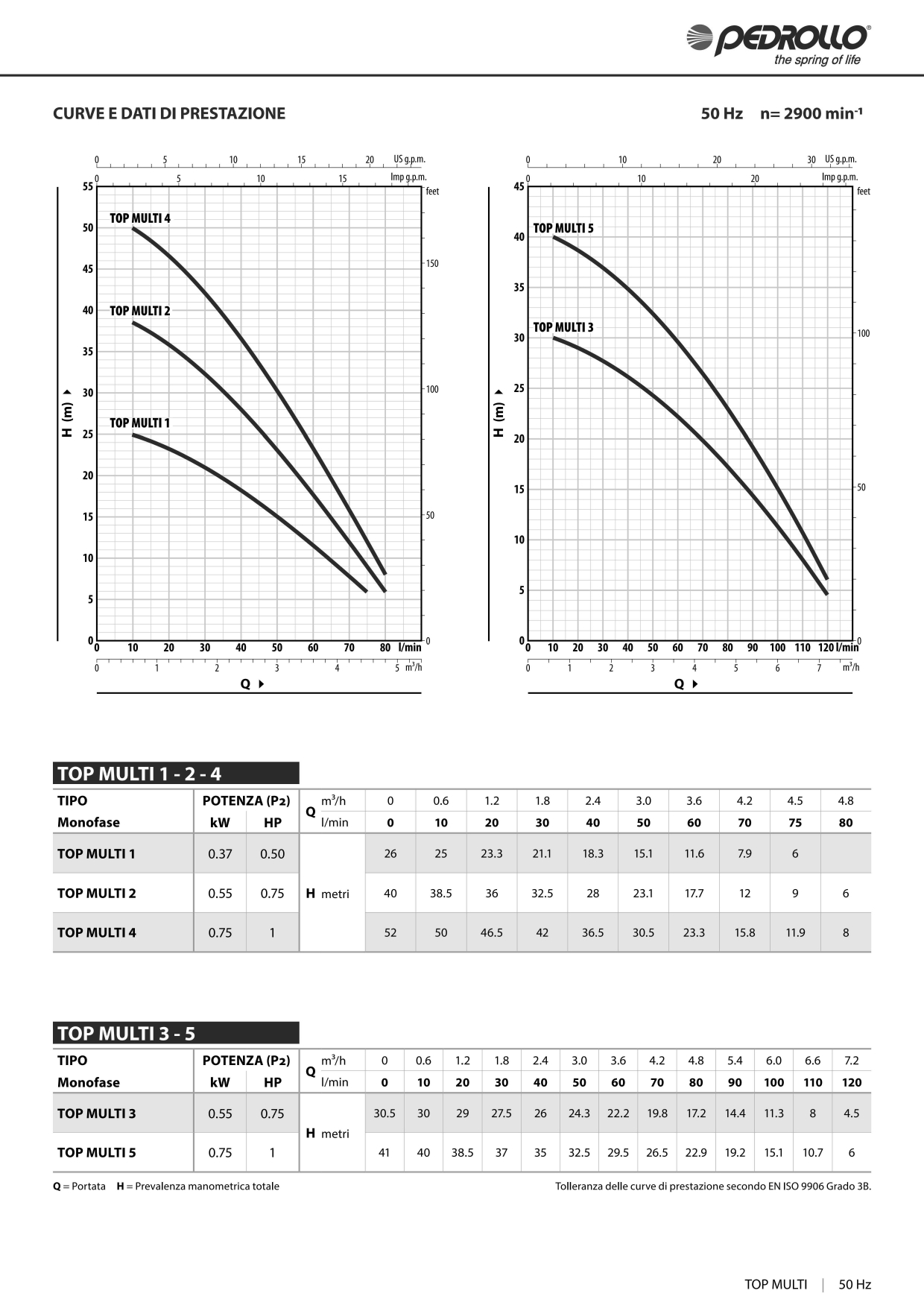

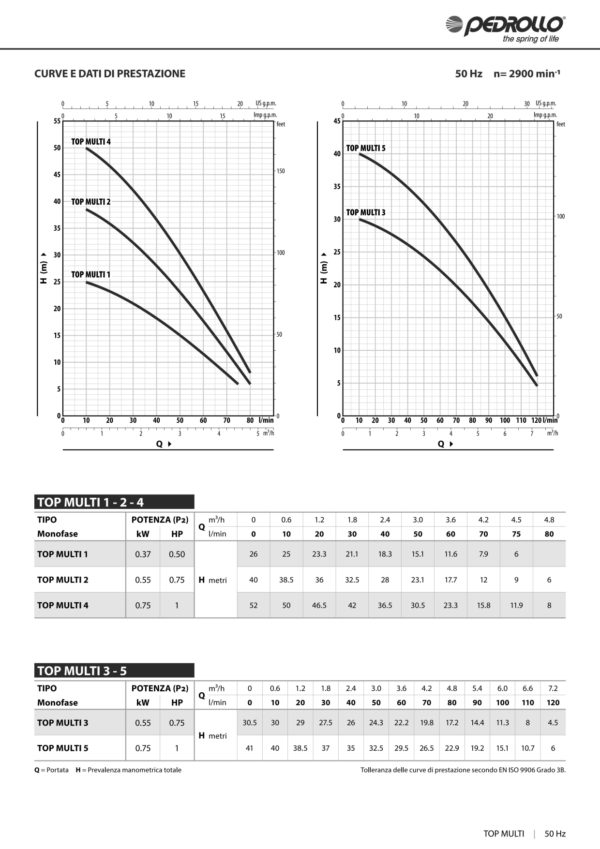

DOWNLOAD DATASHEET TOP MULTI_EN_50Hz
Additional information
| Weight | 9.7 kg |
|---|---|
| Dimensions | 17.8 × 38.0 cm |
| Brand | |
| Power | 0.55kw, 0.75HP |
| Performance | H: 38.5-6 m, Q: 10-80 l/min |
| Ports | DN: 1¼” |
