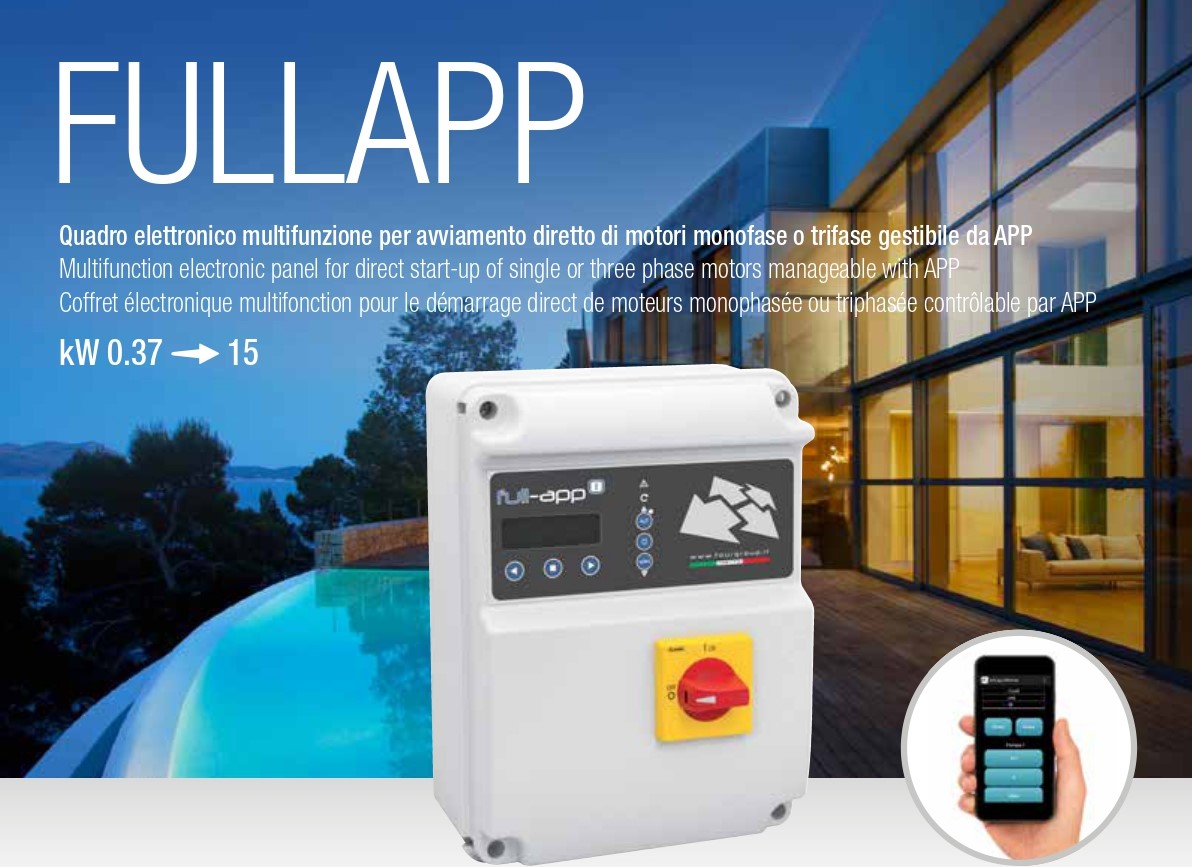

Fullapp1- T/10 Electronic Panel FOURGROUP

Multifunction electronic panel for direct start-up of single or three phase motors manageable with APP

FULLAPP SERIES

• Remote control whit APP (GSM optional)
• Main switch with door interlock
• PACrotection fuses
• AUTO-0-MAN buttons
• LED power on, auto operation, motor operating
• 4 configurable multi-function inputs: multi-contact float/pressure switch (NO)/single-pole level probes
• Output: Relay(single ph.)/Contactor(three ph.)
• Selector for filling/emptying operation
• Internal regulator for probes sensitivity
• Adjustable motor overload protection
• Programmable protection activation delay
• Programmable alarm output (NO-COM-NC)
• Klixon input whit indicator light
• Provision for start-up capacitors
• Input of sensor 4÷20mA
• Multilanguage display whit command keys
• Visualization: voltage/motor current/cosØ/alarms
• Dry running protection from minimum current or cosØ
• Automatic restoration from dry running
• Self-learning of motor data
• Max klixon trips and start-ups/h protection
• Possibility of periodic self-test of motors
• Optical/acoustic alarm output 12V 100mA
• Possibility to exclude a damaged motor

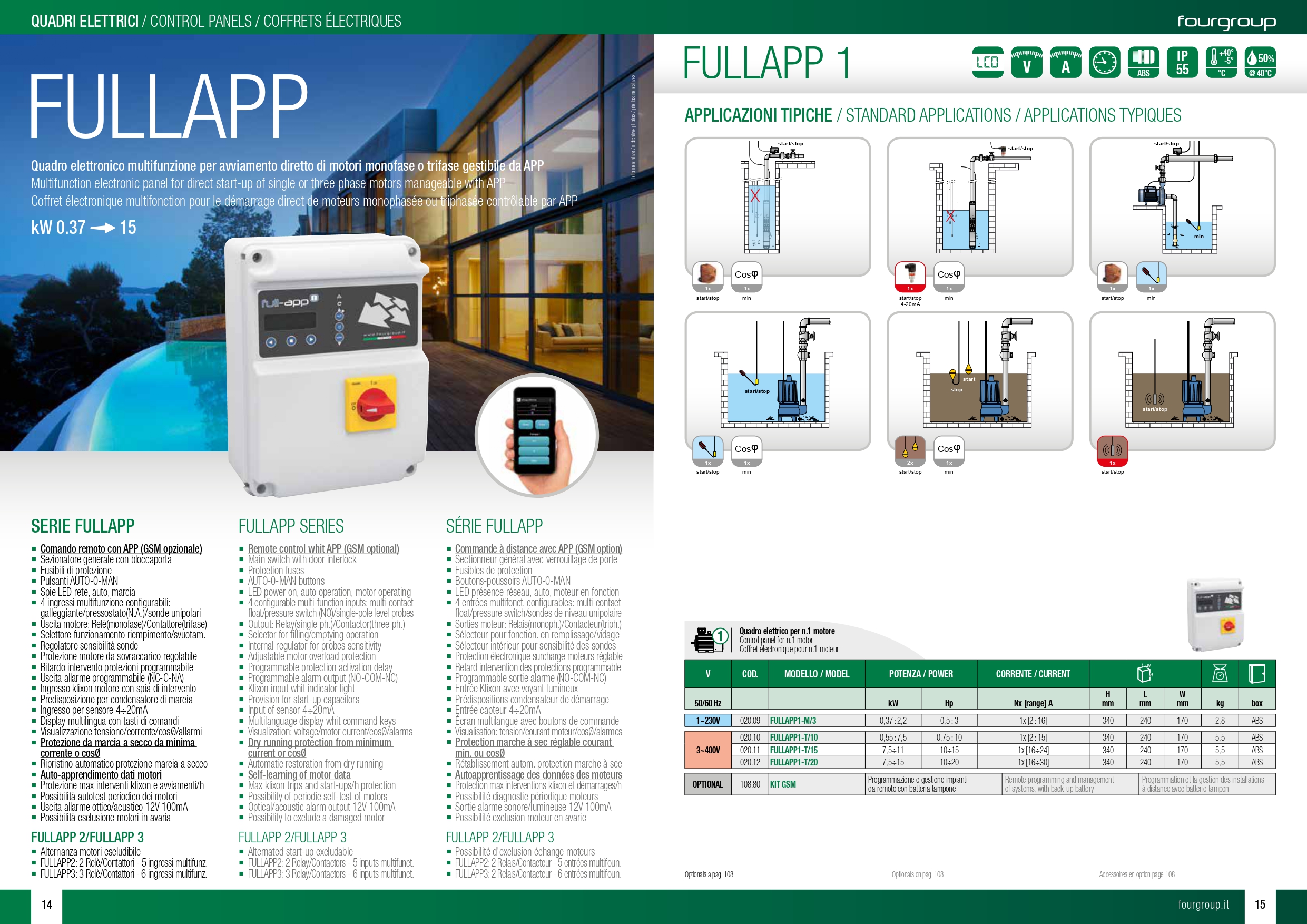

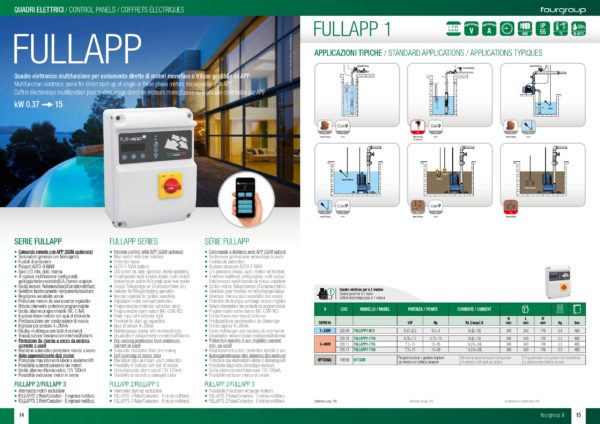

DOWNLOAD DATASHEET  FULLAPP1
