Domino-UP-M/3 HP Electronic panel FOURGROUP

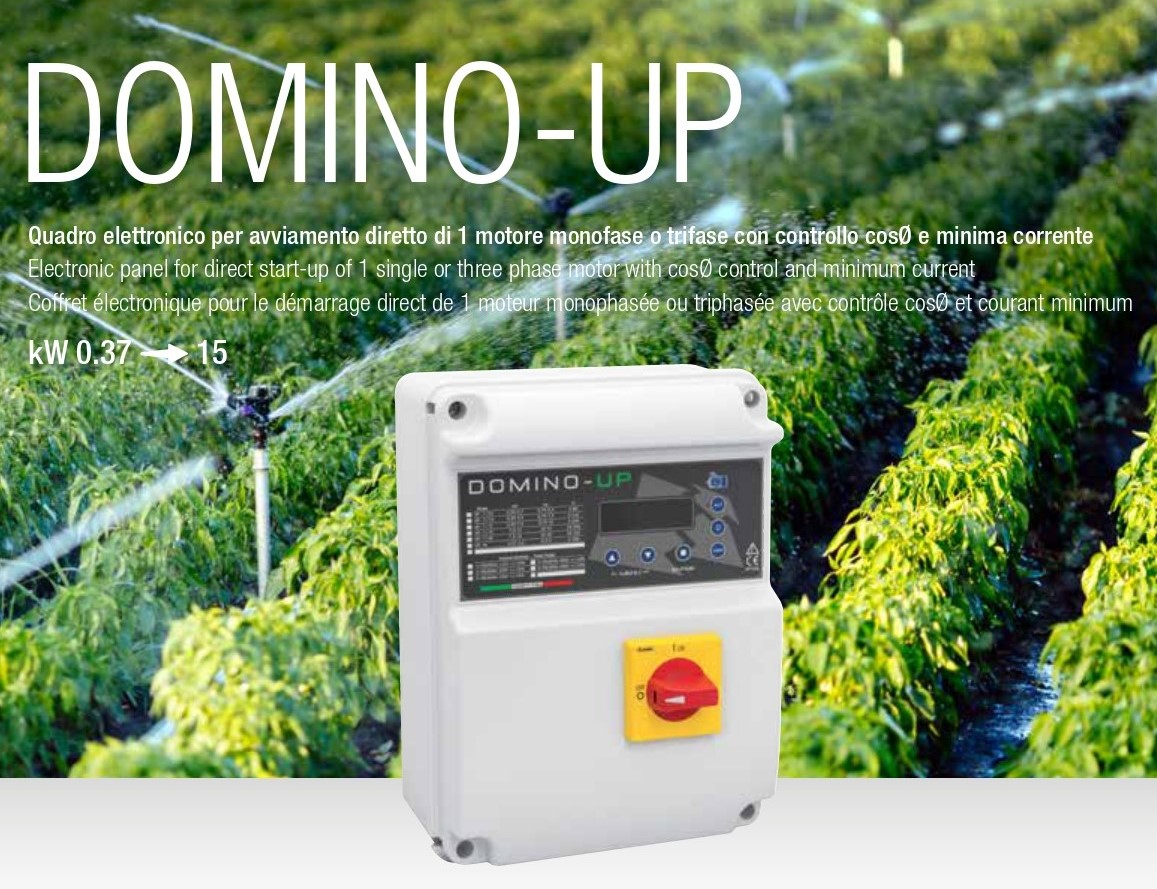

Electronic panel for direct start-up of 1 single or three phase motor with cosØ control and minimum current

DOMINO-UP SERIES

• Main switch with door interlock
• Protection fuses
• AUTO-0-MAN buttons (manual temporary)
• LED auto operation, motor operating
• 1 input multi-contact float/pressure switch (NO)
• Output: Relay(single ph.)/Contactor(three ph.)
• Adjustable motor overload protection
• Provision for start-up capacitors
• Dry running protection from minimum current or cosØ
• Self-learning of motor data
• Multifunction display whit command keys
• Visualization: voltage/motor current/cosØ/alarms
• Automatic restoration from dry running
• Push-buttons for protection restoration
• Motor protection for wrong phase sequence
• Min/max voltage protection

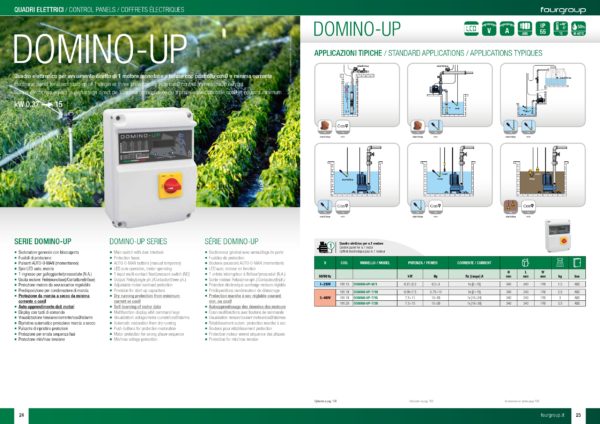

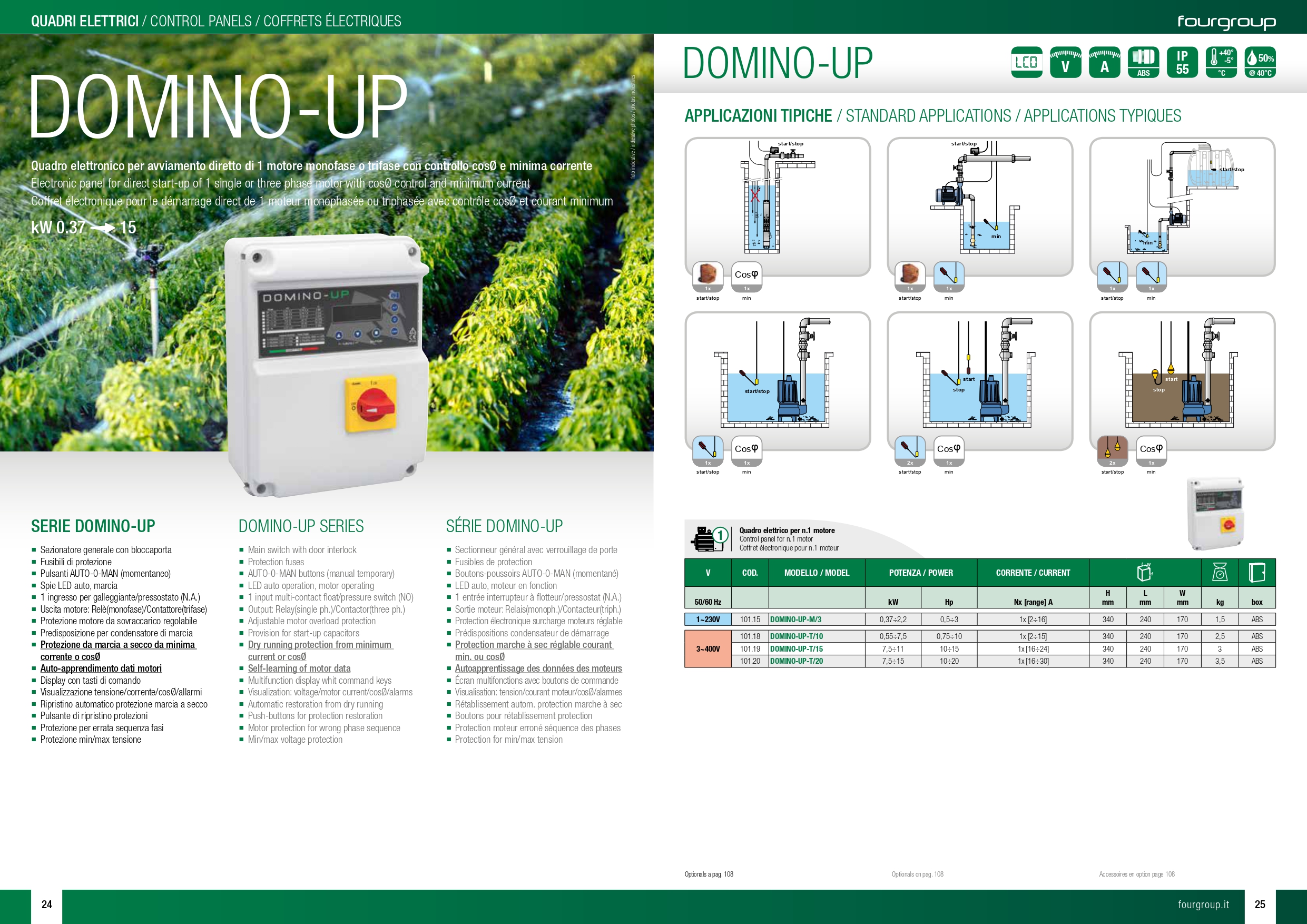

DOWNLOAD DATASHEET  DOMINO UP 1
