Calido-110 Wall mounted heat pump for domestic hot water MAXA

Small size and is aesthetically cared for thanks to the all-Italian design

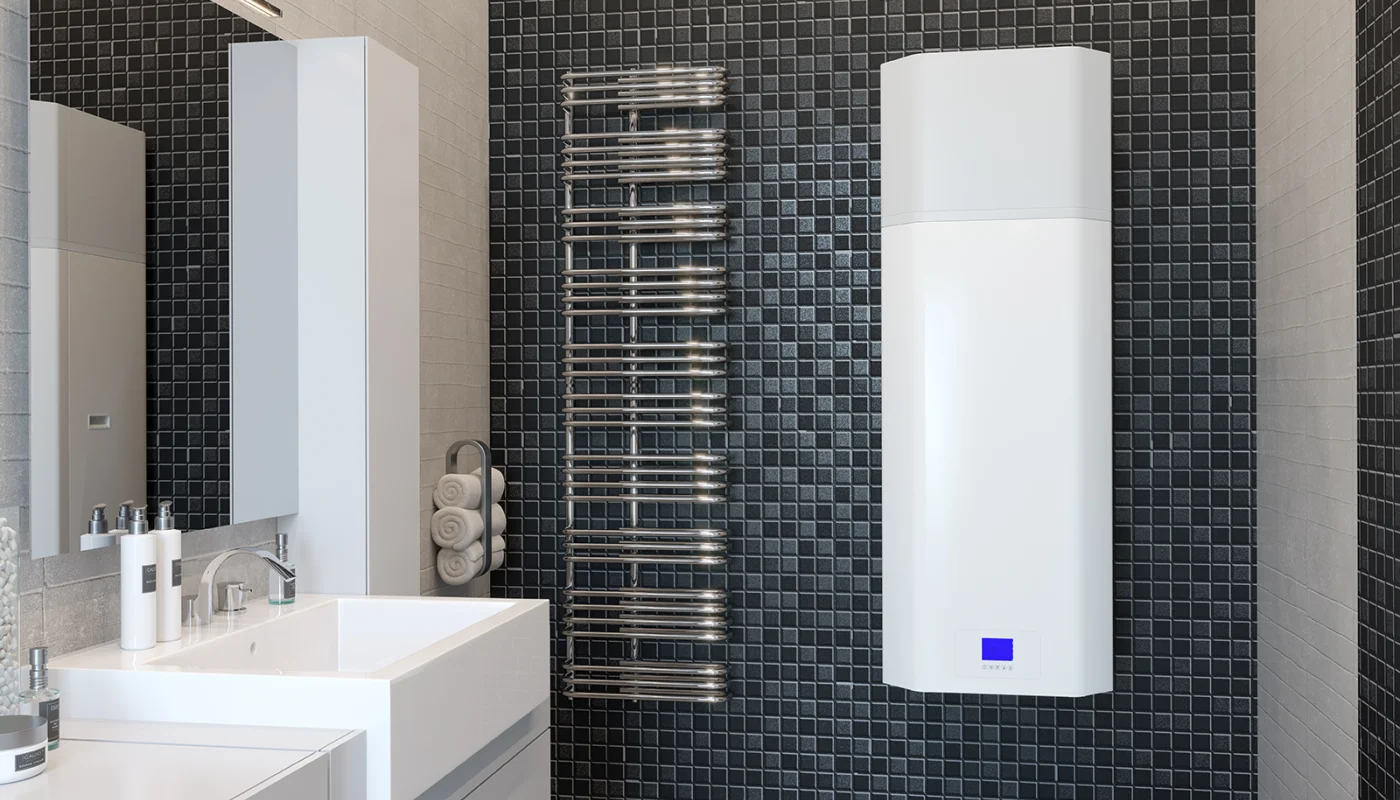

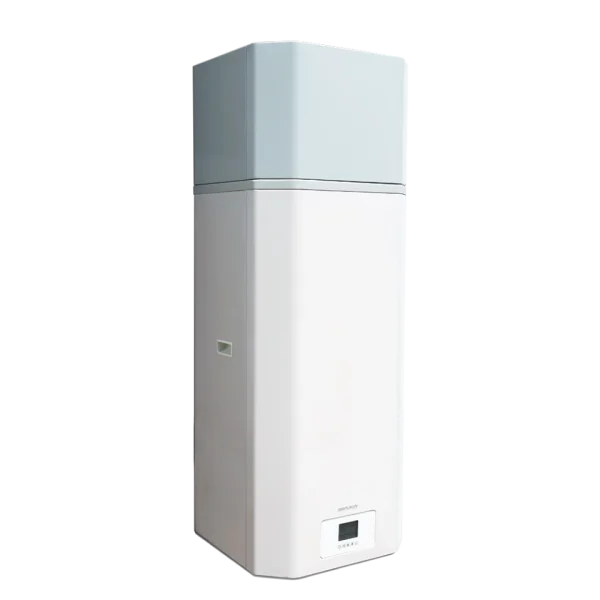

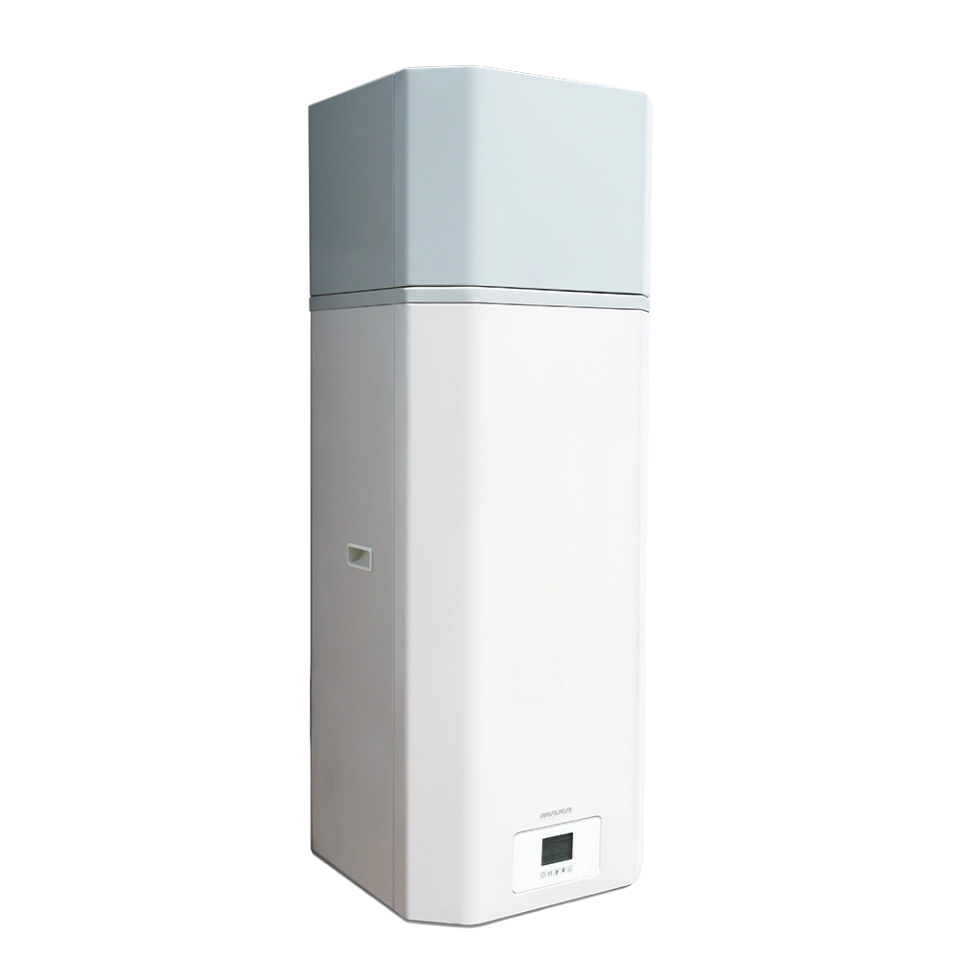

Calido Pensile is a heat pump water heater with air source for wall application or on the ground. It can hold up to 110 liters of water, it has a small size and is aesthetically cared for thanks to the all-Italian design. Dedicated to the residential world, it is perfect for replacing electric water heaters on existing systems, thanks to the hot water temperature set-up functions, timer and holiday setting, anti-legionella function, which can also be controlled via Wi-Fi or an App. The installation is really simple, just connect the water inlet / outlet pipes, the condensate drain and the power supply. The kettle is made of steel with vitrification treatment, insulated with rigid polyurethane foam (PU). The 1.5kW integrated electric heater allows to heat the water from 62 ° C (maximum temperature with the heat pump only) to 75 ° C. The condenser is wrapped in a steel tank, which is not immersed in water while the rotary compressor guarantees maximum efficiency and silence, and finally the centrifugal fan allows the air ducting necessary for the correct operation of the heat pump. Access to the battery is facilitated by the special compartment. The machine has excellent yields even with external temperatures ranging from -5°C to +43°C thanks to the electronic expansion valve that improves its performance.

Product type:
HEAT PUMP FOR DOMESTIC HOT WATER
Intended use:
COMMERCIAL ACTIVITIES, DOMESTIC
Need:
WARM WATER

Technical features of Calido pensile

REFRIGERANT R134A

ENERGY CLASS
The energy saving process was considered an essential aspect while studying and projecting of these units. The very low energy consumption levels together with the high efficiency of the compressors, heat exchangers and the use of the ecologic gas, guarantee to the most part of the models an A" energy class mark.

HOT SANITARY WATER
The installation of a supplementary exchanger working as a condensator in parallel to the air-condensating battery allows a hot sanitary water production independently from the unit working mode.

INTEGRATION HEAT COIL
Integration heat coil

Technical Features

• Water boiler with 100 litres capacity, made of S235 JR steel with internal enamel coating, thermic insulation in hard thick expanded polyurethane (PU) without CFC and HCFC.
• External coating in metal sheet varnished with epossidic powders (white).
• Mounting brackets for wall installation.
• Magnesium anode for corrosion prevention.
• Hydraulic links located on the bottom part.
• Non submerged capacitor wrapped around the steel boiler.
• Integrated electric resistance 1,5 kW 230V~ activable through switches located inside control panel for heating of ranging from 60°C (max temp with heating pump only) to 70°C.
• Rotary compressor for maximum efficiency and reducing noise.
• Centrifugal fan for canalization of the necessary air for the proper functioning of the heating pump.
• Winged pack evaporator.
• R134a refrigerant cooling fluid.
• Safety thermostat set at + 85°C
• Dry contact to start the unit from external switch
• Complete electronic control with control panel equipped with LCD touch display, water temp gauge, bright functioning heating pump and electric resistance gauge, commands with relative gauges for the activation of the various functioning modes, warnings for eventual alarm malfunction, such as:
• Antilegionella function,
• Setting / display of date and hour,
• Hot water temp setting.

Fitted Accessories

• Bracket for wall mounted
• Screws and dowels for mounting
• Spacers for wall mounted
• Dielectric couplings

Loose Accessories

Antivibration dampers for floor installation

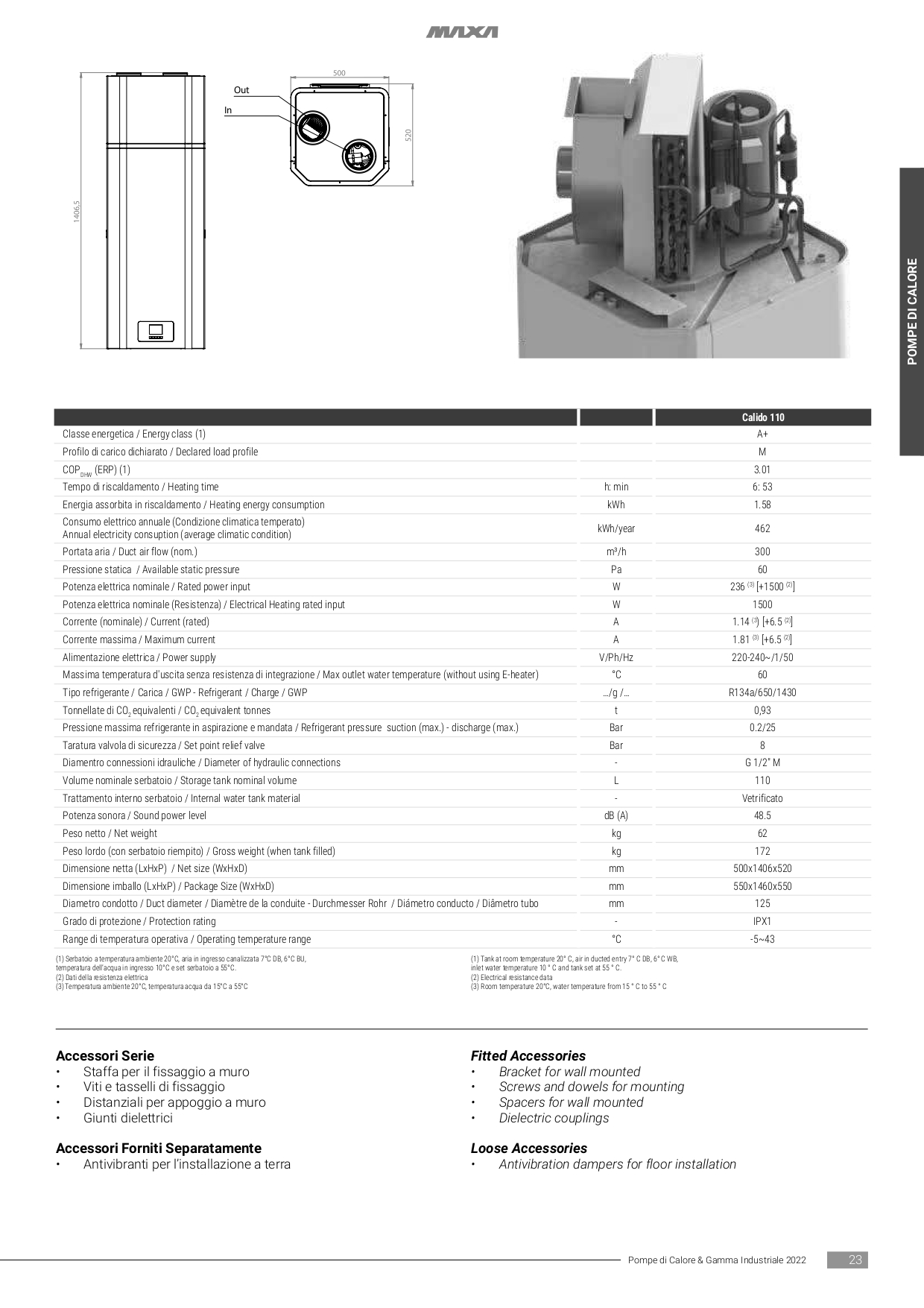

DOWNLOAD DATASHEET  CALIDO 110
