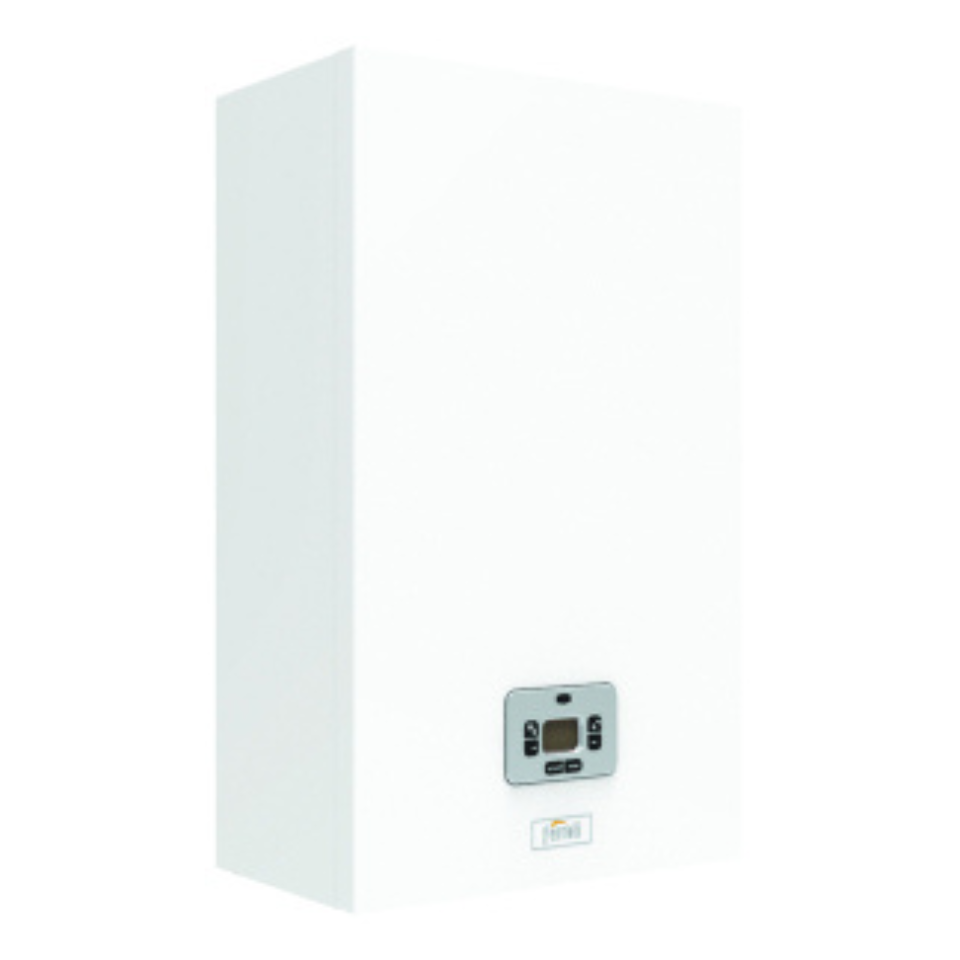

BLUEHELIX THETA 24 C

Boiler with Stainless Steel Primary Heat Exchanger
Single-circuit, jointless, and weld-free, ensuring high efficiency even in older systems.

- MC2: Multi Combustion Control ,A new combustion system with patented gas-adaptive technology derived from industrial applications for improved adaptability to varying gas network conditions (e.g., fluctuations or low pressures).

- M.G.R: Methane, LPG, Propane-Air Ready , The boiler can operate with methane, LPG, and propane-air through a simple configuration, without requiring additional conversion kits.

- Instantaneous Domestic Hot Water Production, Equipped with a dedicated plate heat exchanger.

- User Interface, Features a display and multifunction buttons for parameter adjustment and settings.

-Bypass included

- Hydraulic connections covered by the boiler casing

- Removable three-part casing for easy and quick maintenance

- Refined design and compact dimensions

- “Range Rated” certified generator: the maximum heating capacity can be adjusted to the system's thermal demand while maintaining the efficiency values declared in the certification

- Solar system compatibility: prepared for domestic hot water production combined with solar panel systems

- Sliding temperature operation via optional external sensor

- Modulating low-consumption heating circulator (ErP Ready - Class A)

- Digital flame control with three re-ignition attempts in case of operation lock due to flame detection failure (methane model)

- F.P.S: Flue Protection System. By using the optional flue accessory (041106X0 - flue check valve kit) installable outside the boiler, easy connection to collective pressurized flue systems is possible (e.g., in renovation projects), in compliance with UNI 7129 regulations. NB: The kit is not suitable for built-in installations

- Installation location: also suitable for outdoor installation in a partially protected area down to -5°C as standard and down to -15°C with the optional antifreeze resistance kit

- Free methane/LPG/propane-air conversion during the initial product inspection and activation of the conventional warranty, upon request from the Authorized Service Center

- Warranty extension options: “Senza Pensieri” 5 years
